SPECIFICATIONS

Application: Industrial,Automotive,Automotive

Base Material: UL94-VO Rated, Glass Reinforced Thermoplastics

Brand Name: daier

Bus Material: Nickel Plated Brass

Color: Red/ Black

Conductor Size: 6x M8 (3/8")

Connection Method: Screw Connection

Contact Material: Copper

Continuous Rating: 275A

Dimension: 6.5 x 2.5 x 2.2 inches

Max Voltage: 300V AC/ 48V DC

Max continuous amp: 275a

Model Number: BB275-T6M8-C-RB

Number Of Contacts: 1 - 10

Number of Pole: 2

Place of Origin: Zhejiang, China

Terminal Studs: 6x M8 (3/8")

Type: Screw

Specification

item	High Quality 12V 275A Nickel Bus Bar 275A Nickel Plated Brass Terminal Block Copper Battery Power Bus Bar
Place of Origin	China
	Zhejiang
Application	Industrial, Automotive
Brand Name	daier
Model Number	BB275-T6M8-C-RB
Number of Contacts	1 - 10
Type	Screw
Terminal Studs	6x M8 (3/8")
Dimension	6.5 x 2.5 x 2.2 inches
Max Voltage	300V AC/ 48V DC
Continuous Rating	275A
Base Material	UL94-VO Rated, Glass Reinforced Thermoplastics
Bus Material	Nickel Plated Brass
Application	Automotive
Color	Red/ Black

Product Description

About this item

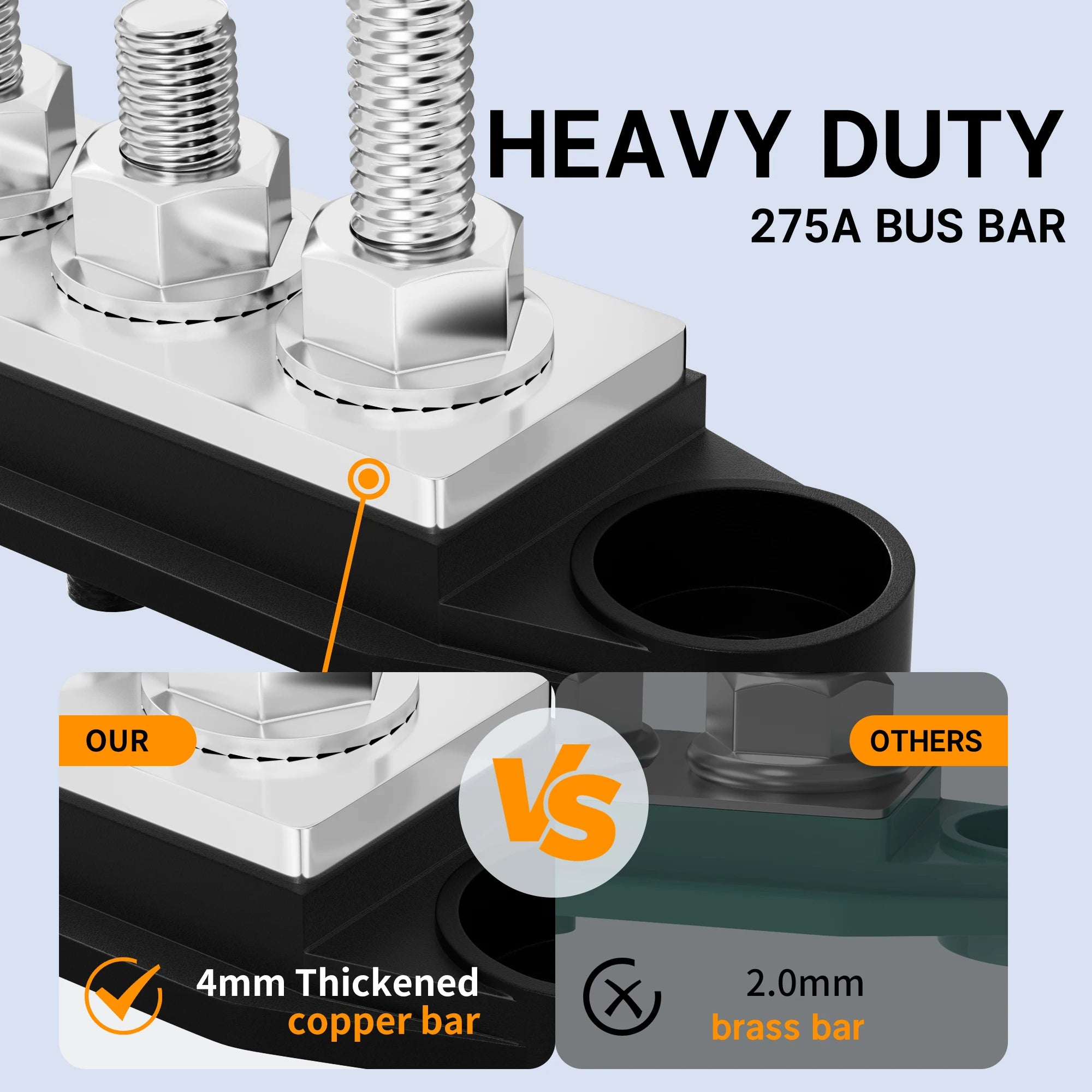

* 【Heavy Duty】Power distribution block can deal with 275 Amp continuous amperage at Max 300V AC or 48V DC voltage. The 4.0 mm
copper bar is thicker than others' 2.0 mm brass busbar and can withstand an actual current of 275A.

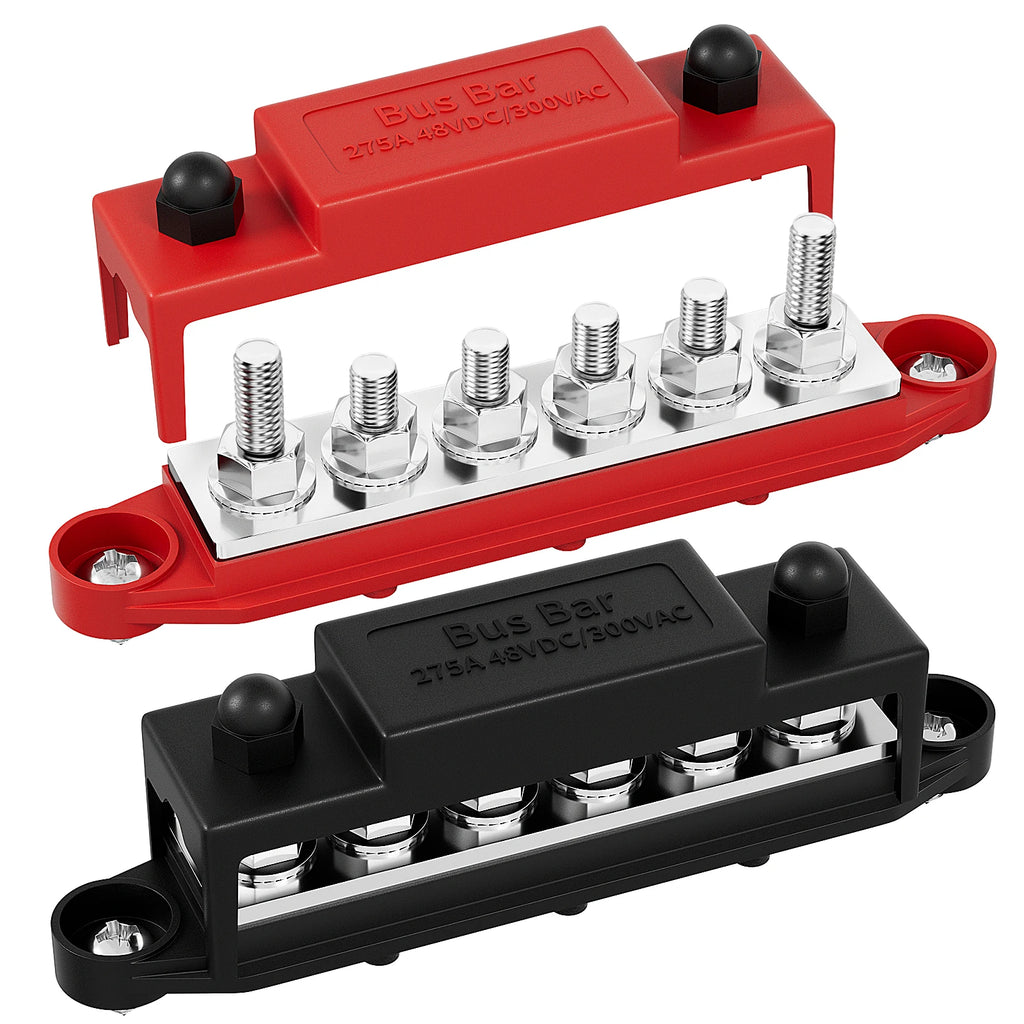

* 【Product Information】A pair of 12V bus bar (red & black) with terminal stud: 6 x 5/16 "(M10). All the terminals of our bus bars
are made of 304 stainless steel, which will be less prone to rust compared to other busbar' Iron termianl and can be used for a
longer time.

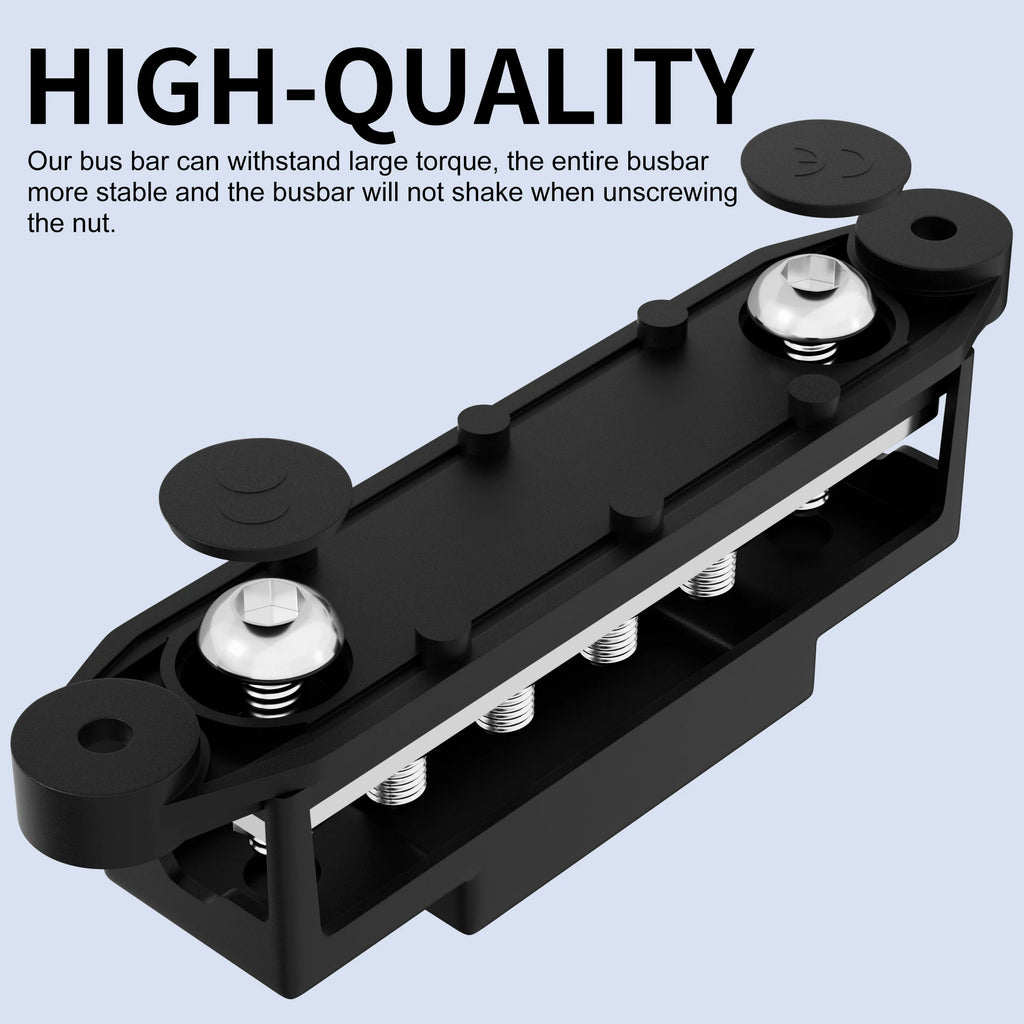

* 【Upgrade Design】The special fixing method of our marine bus bar and base can withstand large torque, the entire busbar more
stable and the busbar will not shake when unscrewing the nut. The busbar fixing method of others 'is not very firm, and the entire
busbar will loosen when the nut is unscrewed.

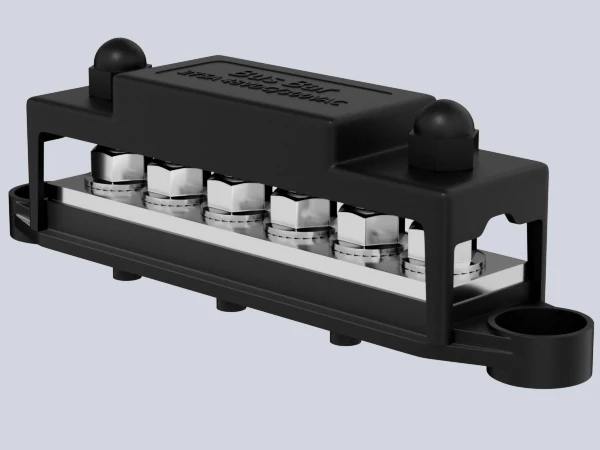

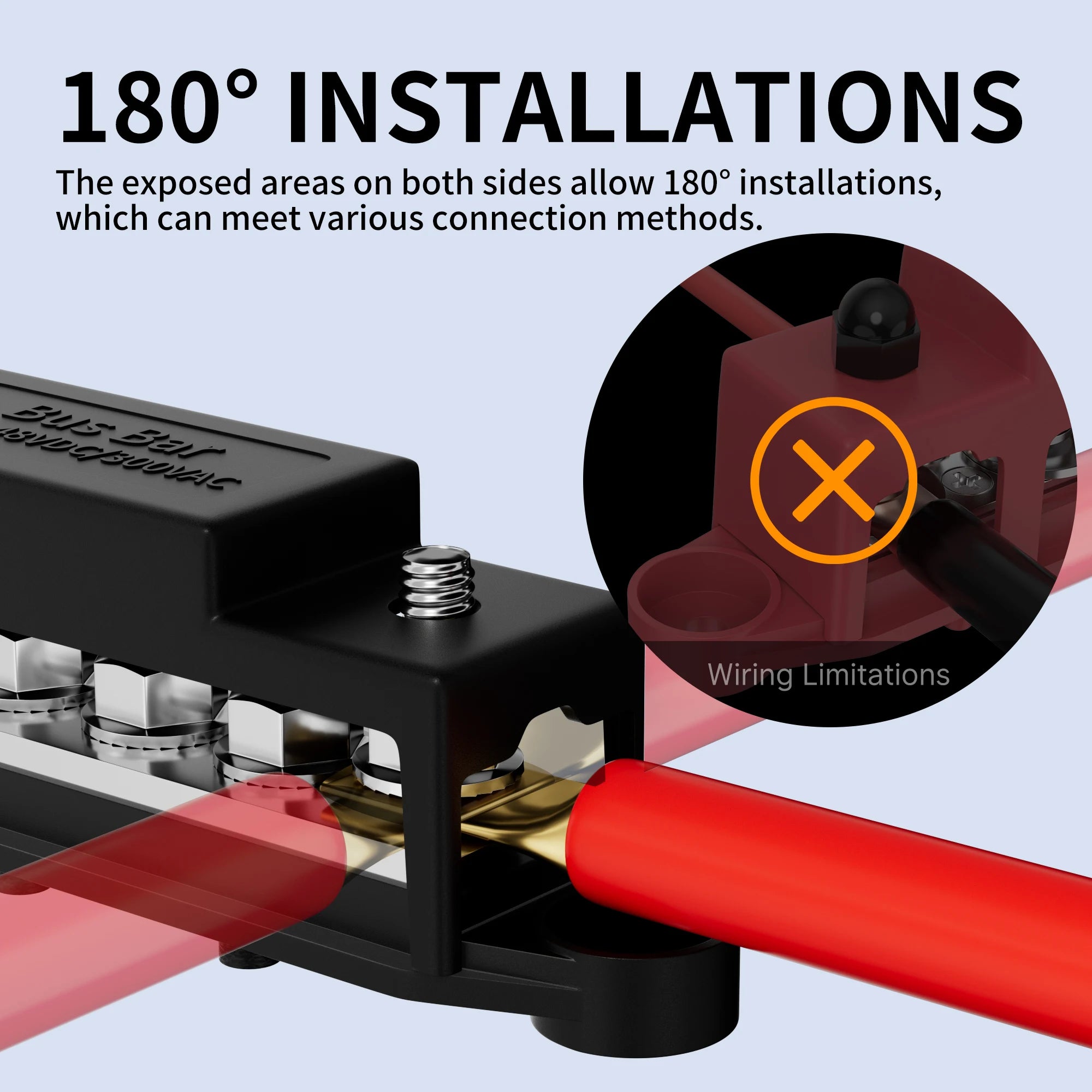

* 【Protect Cover】The busbar cover can cover exposed areas to prevent accidental short circuits. The exposed areas on both sides
allow 180° installations, which can meet various connection methods.

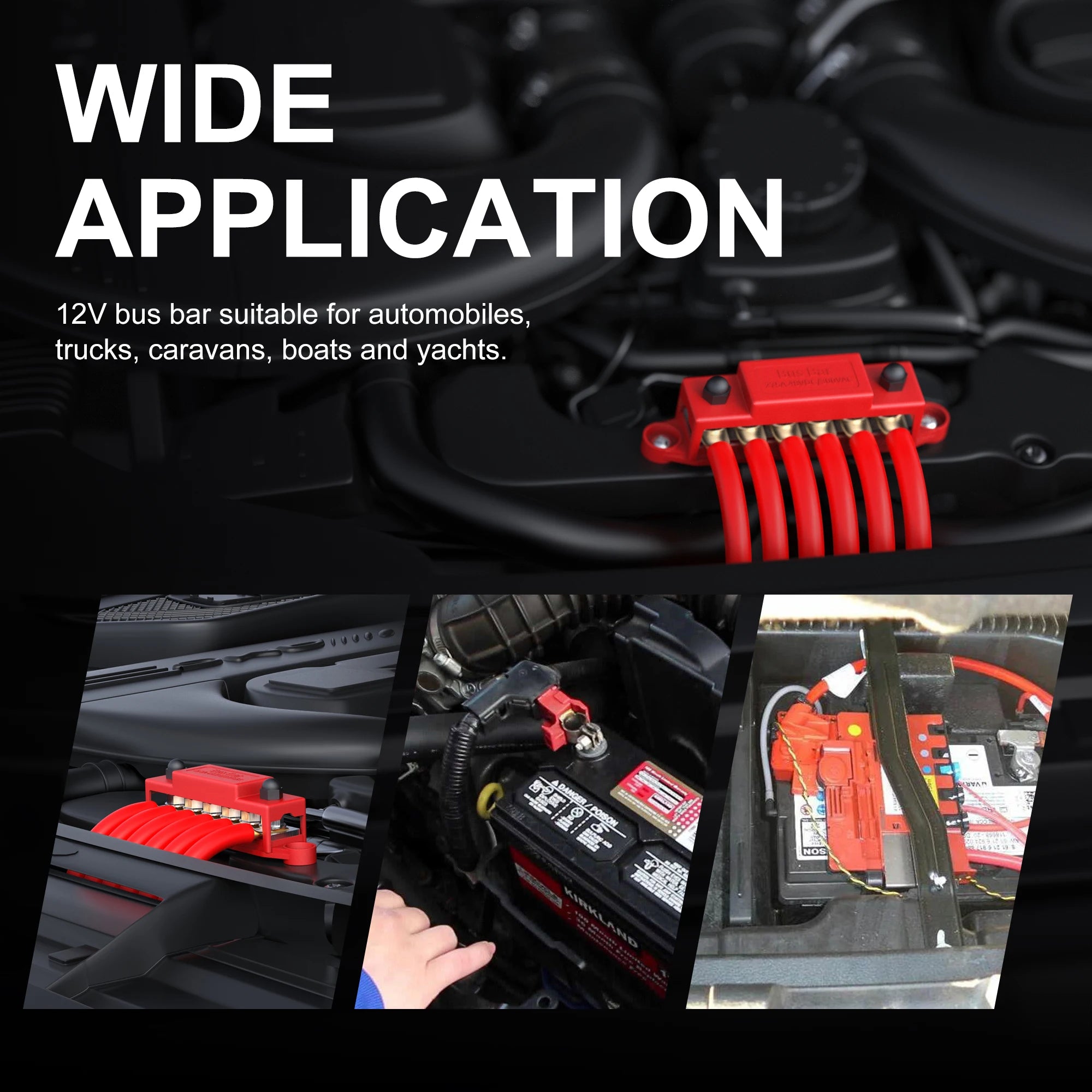

* 【Wide Application】Using a pair of black and red battery bus bar for wire management and wiring can keep the circuit neat and
orderly, reducing the possibility of short circuits. Suitable for cars, trucks, caravans, ships and yachts, etc.

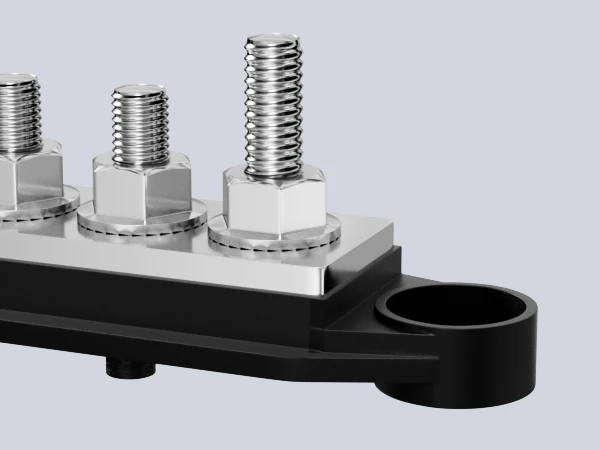

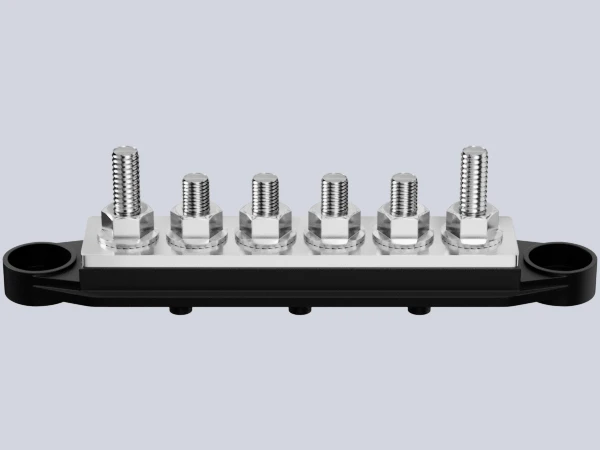

Copper Plate & Stainless Steel Terminals

Copper plate and stainless steel terminals as the conductors of the busbar, make the bus bar have better performances on
conduction and corrosion resistance, enables the bus bar to be used in extreme environment.

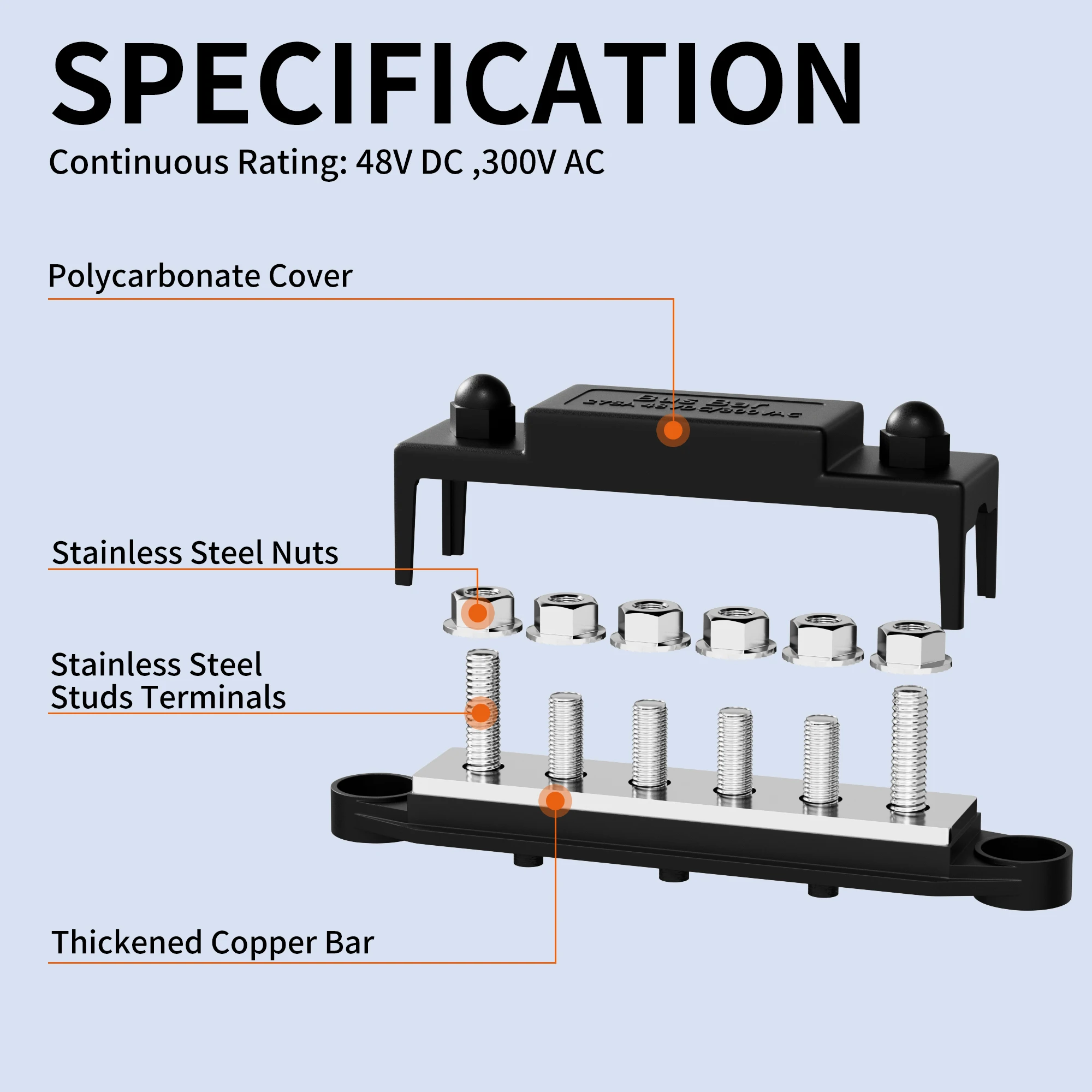

Cover & Nuts

Each copper bus bar will come with polycarbonate cover and nylon nuts, which can cover the exposed stainless steel terminals and
prevent the busbar from causing accidental electrical short circuit.

Application

This bus bar 12v is suitable for both automotive and marine use, such as car, truck, rv, utv, atv, boat, yacht, etc.
